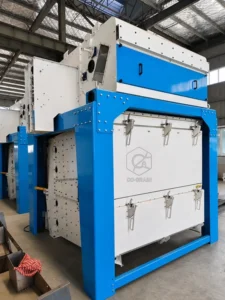

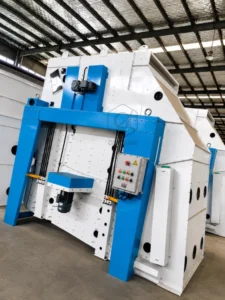

What Is an HZZD Multi-Deck Rotary Cleaner?
The HZZD Multi-Deck Rotary Cleaner is designed for high-capacity grain pre-cleaning and size separation.
Incoming grain is distributed across multiple screen decks to remove oversized impurities, small impurities and fines. When connected to an aspiration system, it can also help remove dust and light impurities.

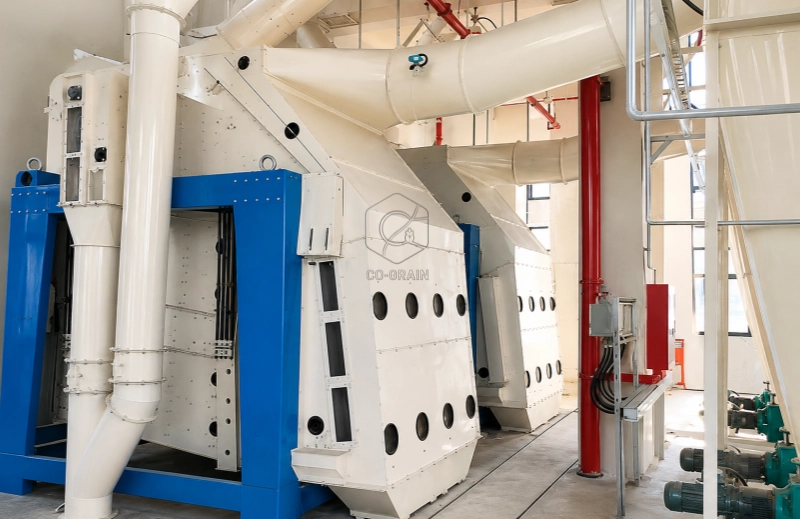

The Rotary Cleaner is suitable for paddy, wheat, corn and other compatible grains. It is commonly installed in large grain receiving systems, dryer plants, silo storage projects and rice-processing lines.
Key Features
High-Capacity Cleaning
The HZZD is designed for large grain receiving and processing lines requiring continuous, high-throughput cleaning.
Multi-Deck Screening
Multiple screen decks provide a large working area for removing coarse and fine impurities and producing selected size fractions.
Uniform Material Distribution
The feeding and distribution system spreads grain across the screen decks to reduce local overloading and support stable cleaning.
Rotary Screen Motion
Controlled rotary motion moves material smoothly across the screen surfaces for continuous separation.
Aspiration Connection
The cleaner can connect to an external aspiration and dust-collection system for light-impurity and dust removal.
Complete Project Integration
The HZZD can be combined with conveying, destoning, magnetic separation, drying and storage equipment.

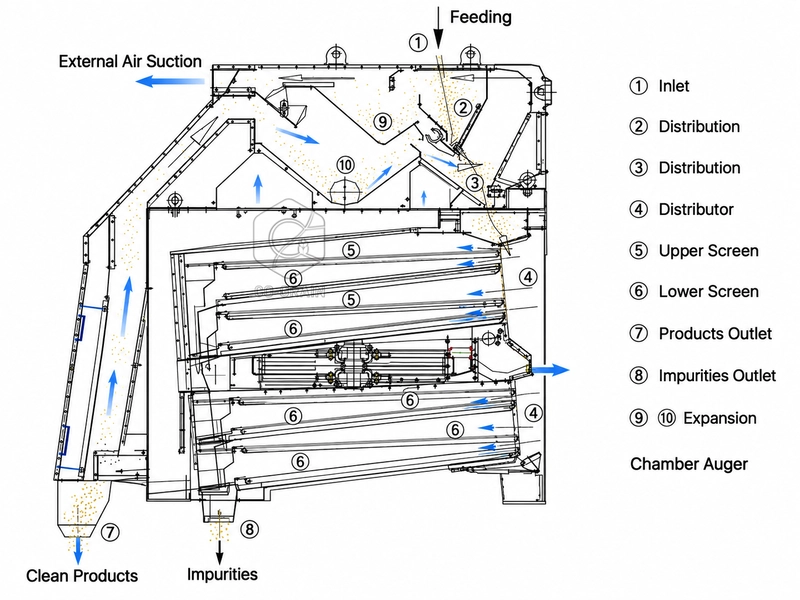

How It Works
Grain enters the feeding section and is distributed evenly across multiple screen decks. Rotary motion moves the material forward while selected screen perforations separate impurities according to particle size.
Large impurities remain on the upper screens. Small impurities and fines pass through the lower screens, while clean grain moves to the next process.
When aspiration is included, light impurities and dust are removed through the connected airflow system.
Process Flow:
Grain Feeding → Multi-Deck Screening → Coarse and Fine Separation → Aspiration → Clean Grain Discharge

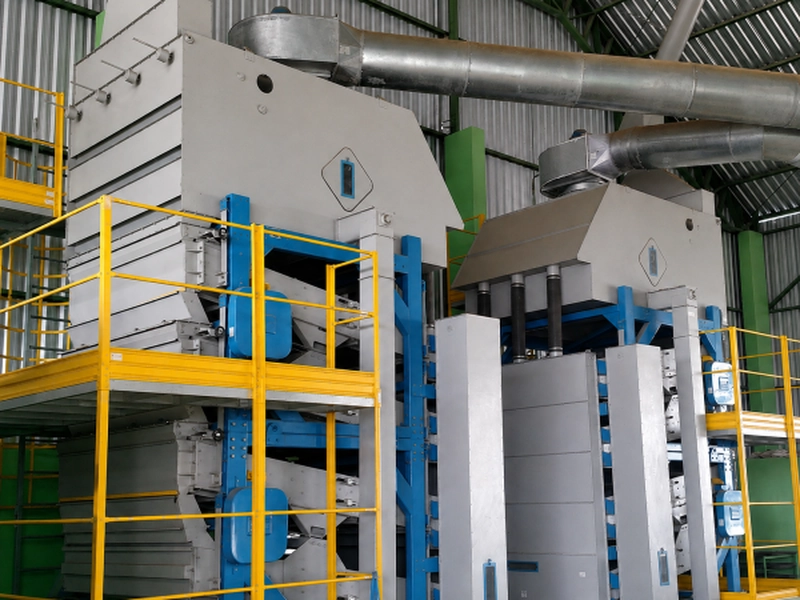

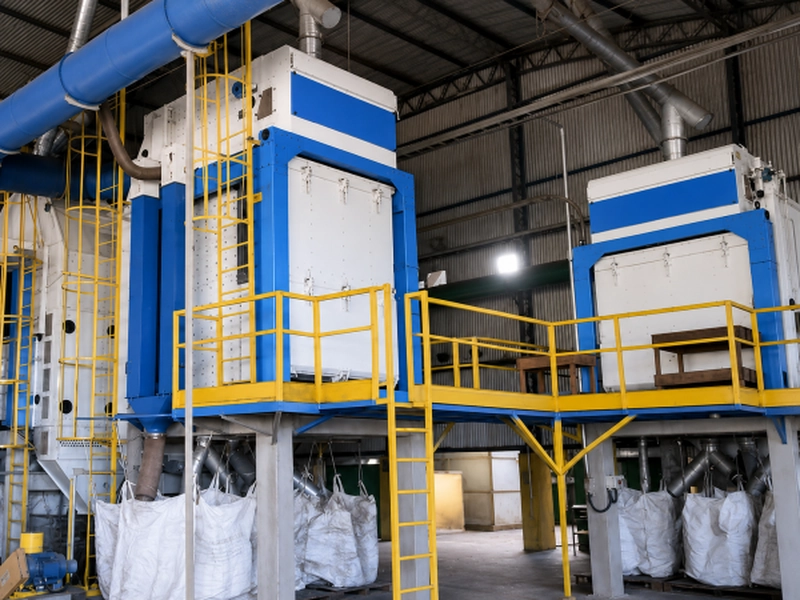

Multi-Deck Rotary Cleaner Applications
The HZZD Multi-Deck Rotary Cleaner can be used in:
- Large grain receiving systems
- Paddy, corn and wheat drying plants
- Grain silo intake projects
- Rice mills
- Feed-grain processing lines
- Commercial grain storage facilities

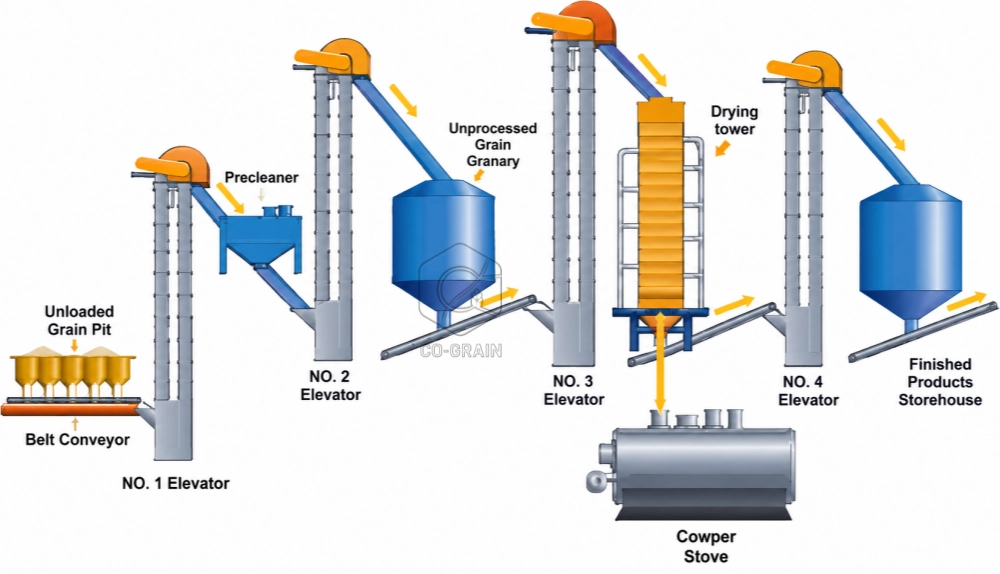

Typical System Flow
Grain Receiving → HZZD Pre-Cleaning → Destoning or Magnetic Separation → Drying, Storage or Processing
The Rotary Cleaner mainly separates materials according to particle size. A destoner, magnetic separator or color sorter should be added when the project requires other separation methods.
Technical Specifications
| Model | HZZD150*200/8 | HZZD200*200/8 |
| Capacity(t/h) | 120-140 | 150-180 |
| Ratary Speed(r/min) | 300±5 | 300±5 |
| Power(kw) | 3+0.75+0.04*2 | 4+0.75+0.04*2 |
| Weight(kg) | 6100 | 7100 |
| Dimension(mm) | 3462*2445*3892 | 3462*2945*3892 |
FAQ
Is the HZZD a cleaner or a grader?
It is primarily a high-capacity grain cleaner. With the appropriate screen configuration, it can also separate grain into selected size fractions.
Can it be installed before a grain dryer?
Yes. It can remove impurities before grain enters the buffer bin or dryer. The cleaner capacity should match the peak receiving rate and dryer throughput.
Can it process different grains?
Yes. It can process paddy, wheat, corn and other compatible grains. Different grains may require different screen perforations and operating settings.
Does it remove stones?
It cannot reliably remove stones that are similar in size to grain. A destoner is recommended when heavy mineral impurities must be removed.

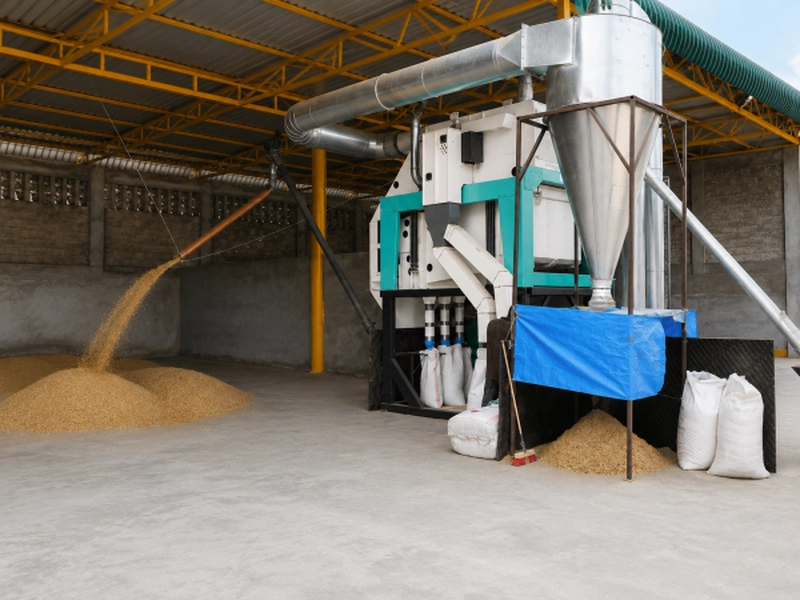

Can it connect to a dust-collection system?
Yes. The HZZD can connect to an external aspiration system. The fan, ducting and dust collector should be designed for the complete cleaning line.
What determines actual capacity?
Actual capacity depends on grain type, bulk density, moisture, impurity load, screen configuration, feed distribution and required cleaning result.
